Motec Wiring Diagram. If you are looking for a particular drawing number, try using. In any case, motec can supply all the components you need, from the smallest pins to complete terminated wiring looms for ecu s.

Podiumconnect Motec Autosport Labs from wiki.autosportlabs.com

After some time with a voltmeter and oscilloscope, i figured out the following pinout: Motec specific coded signal supplied from a single ignition output on the ecu. Wiring in gm made ecu s into cars that aren t supposed to have how to read an electrical diagram lesson 1 17. They include the familiar technical drawings but are expanded with all other relevant product information. These harnesses are for the use of motec's m130 and m150.

Ep® reserves the right to make changes to this document and the.

The motec m1 series offers full engine control. A significant number of engine management problems are caused by poor. I always did my harnesses with the shielded drain separated from the sensor ground. Omex 200 manual (ignition ecu) omex 500 manual omex 600 manual omex 710 manual renault rs ecu wiring diagrams: Wiring ⋆ fischer motorsports | motec engine management systems They still do that same method.

Source:

Aim cable label db9 pin pin function motec m4 connector pin rs232rx 2 rs232tx 22 gnd 5 gnd 21 User manuals & guides > engine management > hundred series/m84 file: Motec offers a wiring diagram for the m48 but it doesn't tell you what signals are on the db9 pins.

I also found a drawing on the motec forum for an m130. Iq3 / motec interface module wiring diagram for m8 ecu. Motec telemetry image file converter software can be used to change image file into normal log file for viewing in motec i2 software.

Detailed technical information on individual motec products, both current and archived, can now be found in the datasheets. Anyone have a wiring diagram for the model?. Wiring in gm made ecu s into cars that aren t supposed to have how to read an electrical diagram lesson 1 17.

Source: content.invisioncic.com

Can bus wiring requirements appendices motec can bus wiring requirements • the can bus should consist of a twisted pair trunk with 100r (0.25 watt) terminating resistors at each end. If u are looking to hook up to ur laptop then u may need a serial cable supplied by motec. 18 pin waterproof connector with gold plated contacts.

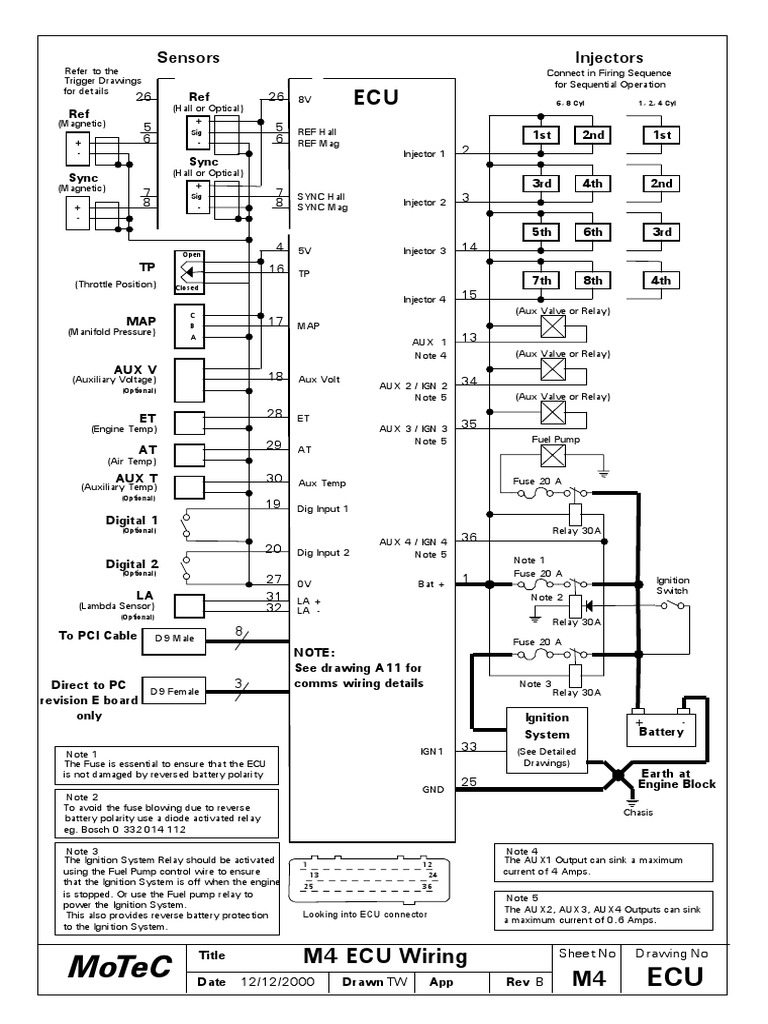

A significant number of engine management problems are caused by poor. 3.1 motec m4 wiring connection here below you see connection scheme and connection table of motec m4. Case size 70 x 100 x 35 mm.

In any case, motec can supply all the components you need, from the smallest pins to complete terminated wiring looms for ecu s. User manuals & guides > engine management > hundred series/m84 file: This can be downloaded from motec website.

Source: imgv2-2-f.scribdassets.com

T1 trigger, motec m800, ignition m&w w/cbr coils aem twinfire They include the familiar technical drawings but are expanded with all other relevant product information. Motec offers a wiring diagram for the m48 but it doesn't tell you what signals are on the db9 pins.

T1 trigger, motec m800, ignition m&w w/cbr coils aem twinfire In some instances, the factory ecu remains in parallel to communicate on the oem can bus or control automatic transmissions. I also found a drawing on the motec forum for an m130.

Before connecting motec m48 ecu to aim devices check its settings using motec ecu menu v6.20 software. Let me know what you guys think. They include the familiar technical drawings but are expanded with all other relevant product information.
